Part 3: Addendum,
Technical Information and the AKE Accessory Bin
Additional accessories supplied by AKE increased headset
mounting options and allowed more detailed control and
interface tests - all very much appreciated.
-
Mini spiral cord kit for
flip-up helmet use (Article No. 32330) extends the
standard microphone connection cord length to
accommodate the additional distance or extension needed
when the flip portion of the helmet is extended up.
-
A goose-neck microphone, PBM 1 (Article No. 32351) allows flexibility in mounting
the microphone component of a headset and can be used
with all other PowerCom components.
-
Microphone windsock
(Article No. 32333) high quality, especially flocked to
provide a soft touch surface and maximum wind noise
suppression was included.
-
PowerCom Operating Device
(Article No. 33354), a mini-control module that
provides: manual switching between iVOX and PTT; a
button for muting audio to the rider but not the
intercom user; and, ENT or enter button to answer and
end mobile phone calls.
Supplied Accessory -
Alan 456R PMR446 Radio
Having the Alan 456R radios was essential so that initial
device tests could be done, allowing data to be
collected and features validated. Although not available
(approved) for North American use, it has a couple of
unique features, one being a built-in intercom
capability – with the optional MA40 kit, full duplex
mode between rider and passenger is provided.
Electronics Connected to the AKE
PowerCom System for This Evaluation
 |
 |
 |
 |
 |
 |
|
Radio Shack Transceivers |
Midland GMRS FRS Radios |
Midland CB Radio |
Garmin Zumo 550 |
BMW Navigator III+ |
Alan 456R PMR446 Radios |
Input/Output Connections and
Measurements
|
▪ Power Connector Lead Cable 46 cm 18 in Large DIN/5-pin
|
|
▪ Power Harness Cable 100 cm 39.3 in 5-pin/5-wire
|
|
▪ Red - 12v positive
|
|
▪ Black - 12V negative
|
|
▪ Yellow - security (optional)
|
|
▪ Green - relay (optional)
|
|
▪ Blue - helmet/power detec (optional)
|
|
▪ Driver Connector Cable 73 cm 28.5 in Small DIN
|
|
▪ Intercom Connector Cable 74 cm 29 in Small DIN
|
|
▪ Phone/Radio Connector (D) Cable 24 cm 9.5 in Small DIN
|
|
▪ Remote Control Connector (R) Cable 25 cm 9.75 in Small
DIN
|
|
▪ 33355 iVOX Activator Terminator Plug n/a n/a Small DIN
|
|
▪ 31323 Helmet Set HighVoice, for full face Kit
|
|
▪ Headset connection harness/flex cable Cable 58 to 250 cm
23 to 98 inches Large DIN to 2/3 pin connectors
|
|
▪ Microphone connection Wire pair 29 cm 11.5 in 2 wire to
connector
|
|
▪ Right side speaker connection Wire pair 48 cm 17.8 in
2-wire
|
|
▪ Left side speaker connection Wire pair 14 cm 5.5 in
2-wire to 3-pin
|
|
▪ 31336 Helmet Set, HighSound, for multi-type Kit
|
|
▪ Headset connection harness Cable 21 cm 8.2 in Large DIN
to connectors
|
|
▪ Headset connection extension cable Cable 50 to 200 cm 19
to 79 inches Large DIN
|
|
▪ Microphone connection flex cable Cable 29 cm 11.5 in 2
pin connector
|
|
▪ Right side speaker connection Wire pair 48 cm 17.8 in 2
wire to left hand side
|
|
▪ Left side speaker connection Wire pair 14 cm 5.5 in 2
wire to 3 pin connector
|
|
▪ 32351 Gooseneck microphone kit Kit 18 cm 7.0 in 2 pin
connector
|
|
▪ 32330 Flex connector extension for micophone Kit 2 pin
connector
|
|
▪ 33354 PowerCom Operating Device (manual control) Device
|
|
▪ Module Connection Cable 27 cm 10.6 in Small DIN
|
|
▪ Connection Cable Cable 200 cm 79 in Small DIN
|
|
▪ 33337 Adapter 2-way radio, double jack plug style Cable
170 cm 67 in Small DIN/2.5mm/3.5mm
|
|
▪ 33375 CB Radio Adapter Cable 200 cm 78.7 in Small
DIN/4-way/3.5mm
|
|
▪ 33356 Kenwood Radio Adapter Cable Small DIN/2.5mm 3-pole
|
|
▪ 31340 Bluetooth Helmet Set 101 with PB-HC2 Kit
|
|
▪ Bluetooth Control Module Device 1.8 x 11.6 x .6 cm .7 x
4.5 x .25 in 3 connectors for microphone, speakers and
battery
|
|
▪ Flex cable helmet connector Cable
|
|
▪ Helmet speaker set Device 3 pin connector
|
|
▪ Right side speaker cable Wire pair 48 cm 17.8 in 2 wire
to left side
|
|
▪ Left side speaker cable Wire pair 14 cm 5.5 in 2 wire to
3 pin connector
|
|
▪ Helmet microphone Wire pair 29 cm 11.5 in 2 wire to 2
pin connector
|
|
▪ Li-Polymer Battery, 120 mAh Power 4.0 x 1.5 cm 1.5 x 1/2
in 2 wire to 2 pin connector
|
|
▪ PB-HC2 Pair N Go Bluetooth Module Module 7 x 4 x 2 cm
2.75 x 1.6 x .8 in Large DIN, 6 pin
|
|
▪ Travel Charger with 220 plug Power 220v plug
|
|
▪ 3088 Li-ion-Polymer Battery, 750 mAH Power 2 wire to 2
pin connector
|
Power Harness Installation
The first section of the two piece power harness has
five lead wires mated to a flat 5-pin male connector
which is then mated to the control module power cable
section.
The five wires are assigned the following
functions:
-
Red:
Positive (12V) with spade connector
-
Black:
Negative (12V with spade connector
-
Yellow:
Optional, driver security feature
-
Green:
Optional, for use with a relay (switched
power, accessories, etc)
-
Blue:
Only necessary when not using the automatic
helmet detection capability (AKE PowerCom systems power up/power down when
connected/disconnected via the main helmet connection).

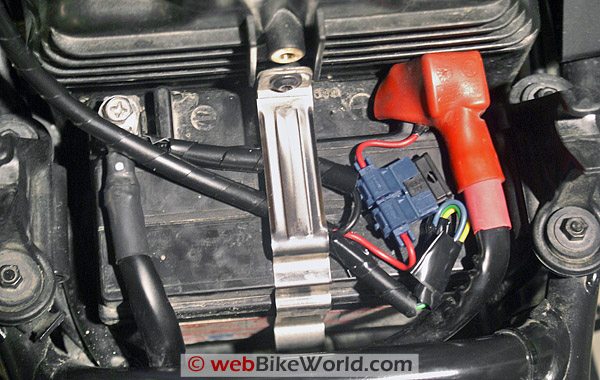

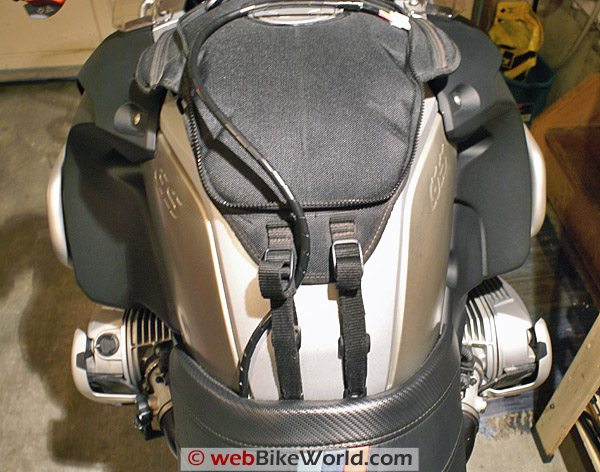

For protection and handling
the power harness was wrapped in flexible wire wrap and
routed up inside the tank-bag bracket that resides along
the bottom edge of the dummy panel, then up the back of
the panel to the tank-bag, temporary home for the ROGER
One.
Using only the red and black
leads initially, the other three were taped up, then
collectively wrapped and secured to the top battery
clamp, out of the way.
The module is Bluetooth
v2.0, Class 1 (100mW) with a 10 metre range and it
features an integrated booster to keep signals clear
even in high noise environments. The low profile,
long-life battery has an energy saving mode. The
microphone is noise compensated and has a foam windsock
to help as well. The loudspeakers are dynamic
transducers housed in a waterproof membrane.
|
