Ducati Superquadro Engine - EICMA 2011 Live Report

2012 Superquadro Engine
by Rick Korchak for webBikeWorld.com
Reporting From EICMA 2011

Highlights of This Report:

More:

Superquadro Engine at EICMA 2011

November 8, 2011 - Ducati had a "cutaway" Superquadro engine on display next to the Ducati 1199 Panigale (report) at the EICMA show.

While the Superquadro isn't a classic looker like, say, a BSA 441 engine or the original Bonneville 650 cc, it's the guts that count. The pistons look amazing in photos and they look incredible in real life -- like there's no way something that wide yet that short could possibly pump up and down at 10,750 RPM.

The stop/start forces and the acceleration forces placed on those pistons are mind-bending. Not to mention the pumping pressure forces as the piston moves away from the valves, down into the cylinder. Ducati had to use MotoGP technology to evacuate the air from inside the crankcase or the pressures involved would more or less keep the pistons from moving through their entire stroke.

No one -- and I repeat, no one -- needs this kind of power and technology on the street. But then again, we don't really need motorcycles either, do we? Or $150.00 athletic shoes. Or $4.00 cups of caffeine from Starbucks...

I, for one, just once in my life would like to tear up a Panigale and the Superquadro on the track (or the street). Not sure if that will ever happen, but we can always dream...

Here are some pics and a video from today's presentation at the 2011 EICMA show, then more information on the Superquadro and studio photos follow. Enjoy!

More: Ducati 1199 Panigale Photos, Video, Info

Ducati Superquadro Engine Photos and Video

Ducati Superquadro Engine

Ducati Superquadro Engine

Ducati Superquadro Engine Pistons

Ducati Superquadro Engine Valves

Ducati Superquadro Engine Valves

BUY YOUR
Motorcycle Clothing and Gear
With This Link to RevZilla!
wBW Video: Ducati 1199 Panigale Superquadro Engine
Superquadro Engine

November 7, 2011 - Ducati 1199 Panigale "Superquadro" power house engine has been revealed. The most extreme benchmark ever Ducati's latest engine, the Superquadro, goes beyond the barriers of engineering to enable the introduction of a futuristic Superbike today.

It's a no-compromise approach to design, combined with Ducati’s Italian innovation has now set the most extreme benchmark ever and stands as the latest milestone in Ducati’s long and iconic history of Superbike engines. Ducati engineers were given a near impossible design brief to create the new generation Superbike engine for the Ducati 1199 Panigale.

Increase power, torque and user-friendliness and reduce overall vehicle weight and scheduled maintenance costs seemed impossible tasks, but given a "blank canvas" to create the new power-plant and encouraged to think outside-of-the-box to achieve the unachievable, engineers have finally ticked all the boxes.

The innovative Superquadro engine, so called because of its massively over-square bore and stroke ratio, has increased power to an absolute production twin-cylinder milestone of 195 hp and torque to 98.1 lb-ft (13.5 kgm) with user-friendly Riding Modes that deliver that power appropriate to the rider’s style and environment.

Its construction has enabled a radical reduction in overall vehicle weight and, further identifying Ducati’s constant pursuit of performance perfection, major services have been extended to 24,000 km (15,000 miles). Only Fabio Taglioni’s masterpiece 90° L-twin configuration and Desmodromic valve control have been retained from previous engines. Everything else is new.

Ducati Superquadro Engine

BUY YOUR
Motorcycle Clothing, Helmets, Gloves, Boots and Gear
With This Link and Help Support webBikeWorld!
Engine Architecture

With the engine designed to be a fully stressed member of the chassis, its architecture has been completely re-calculated to provide the best possible vehicle construction for layout, weight distribution and strength. The cylinders, which remain at 90° to each other, have been rotated backwards around the crankcases by a further 6°, until the front cylinder is 21° from horizontal.

This has enabled the engine to be positioned 32mm further forwards for improved front / rear weight distribution in addition to perfectly positioning the cylinder head attachment points for the 1199 Panigale’s monocoque frame.

The crankcases, which are vacuum die-cast using Vacural technology to ensure optimal weight saving, consistent wall thickness and increased strength, also incorporate in their form the outer water-jacket of the cylinder, eliminating the jointing face that used to exist at the base of the cylinders.

Instead, the Superquadro has separate nikasil-coated aluminium wet-liners inserted into the tops of the crankcase apertures. This design enables secure fixing of the cylinder head directly to the crankcase, improved sealing and enhanced heat dissipation from the thin cylinder-liners directly into the surrounding coolant.

Ducati Superquadro Engine

The primary-drive casing, clutch casing and outer cover, sump and cam covers are all cast in magnesium alloy, ensuring a lightweight engine despite its increased strength as an integral part of the chassis. In addition to cylinder position, the crankcases now use shell main bearings for the crankshaft, previously only used by Ducati on the Desmosedici RR engine.

Removing the roller bearings has enabled an increase in diameter of the crank journals for enhanced rigidity and an increase the crankcase section around the main bearing area for improved strength in line with the Superquadro’s extreme power output.

The shell bearings are force-fed oil from internal drillings within the main bearing pillars to keep the new crankshaft well lubricated and is quickly scavenged back into the sump with the introduction of a new Ducati feature, a highly efficient MotoGP-style vacuum pump.

The pump is driven by the main oil pump shaft and effectively maintains constant vacuum in the crankcase area below the pistons, reducing atmospheric resistance during the down-stroke of the piston and controlling the internal breathing of the engine.

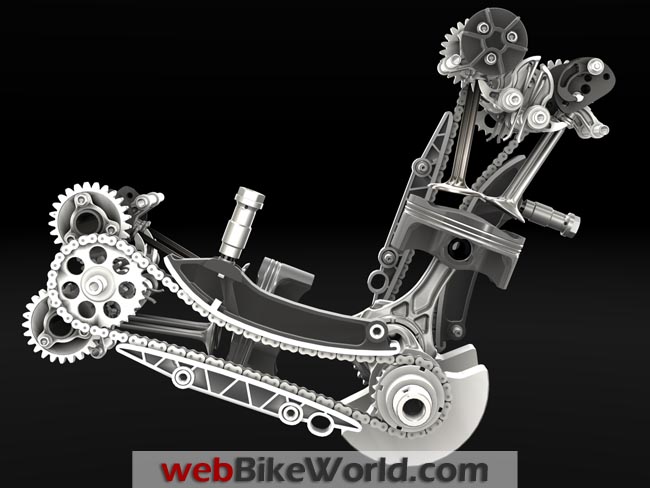

Superquadro Engine Drive Chains
